Three Legs Chain Slings
- Product Description
Name: Three Legs Chain Slings
Brand name: Sipower Rigging
Instructions: The terminal uses the chain link with the shackle. It has the advantage that customers can combine at will.Terminal may be hook ,link and shackle.
Function: Chain sling,lifting chains, master link,eye hook,shackles,connecting link.
Contact us: info@sipowerinternational.com

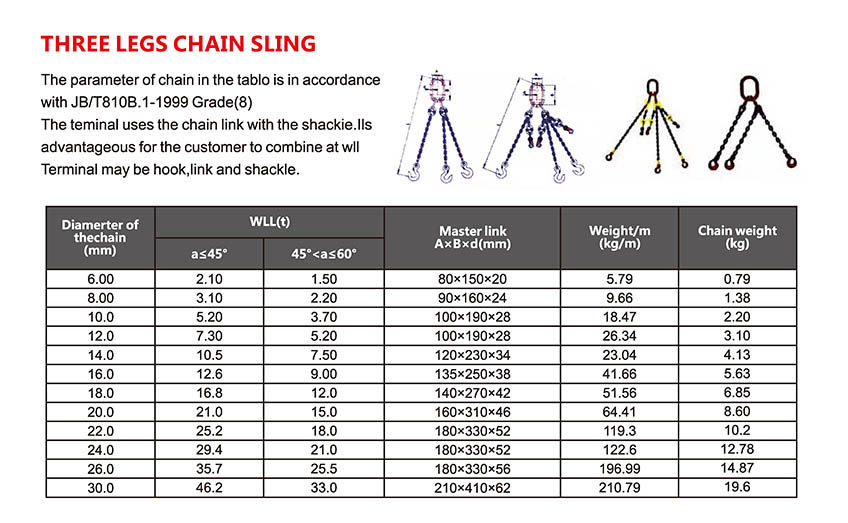

THREE LEGS CHAIN SLING
The parameter of chain in the table is in accordance with JB/T810B.1-1999 Grade(8)
The terminal uses the chain link with the shackle. It is advantageous for the customer to combine at will.
Terminal may be hook,link and shackle.
| Diameter of the chain (mm) | WLL(t) | Master link A×B×d(mm) | Weight/m (kg/m) | Chain weight (kg) | |
| a≤45° | 45°<a≤60° | ||||
| 6.00 | 2.10 | 1.50 | 80×150×20 | 5.79 | 0.79 |
| 8.00 | 3.10 | 2.20 | 90×160×24 | 9.66 | 1.38 |
| 10.0 | 5.20 | 3.70 | 100×190×28 | 18.47 | 2.20 |
| 12.0 | 7.30 | 5.20 | 100×190×28 | 26.34 | 3.10 |
| 14.0 | 10.5 | 7.50 | 120×230×34 | 23.04 | 4.13 |
| 16.0 | 12.6 | 9.00 | 135×250×38 | 41.66 | 5.63 |
| 18.0 | 16.8 | 12.0 | 140×270×42 | 51.56 | 6.85 |
| 20.0 | 21.0 | 15.0 | 160×310×46 | 64.41 | 8.60 |
| 22.0 | 25.2 | 18.0 | 180×330×52 | 119.3 | 10.2 |
| 24.0 | 29.4 | 21.0 | 180×330×52 | 122.6 | 12.78 |
| 26.0 | 35.7 | 25.5 | 180×330×56 | 196.99 | 14.87 |
| 30.0 | 46.2 | 33.0 | 210×410×62 | 210.79 | 19.6 |
