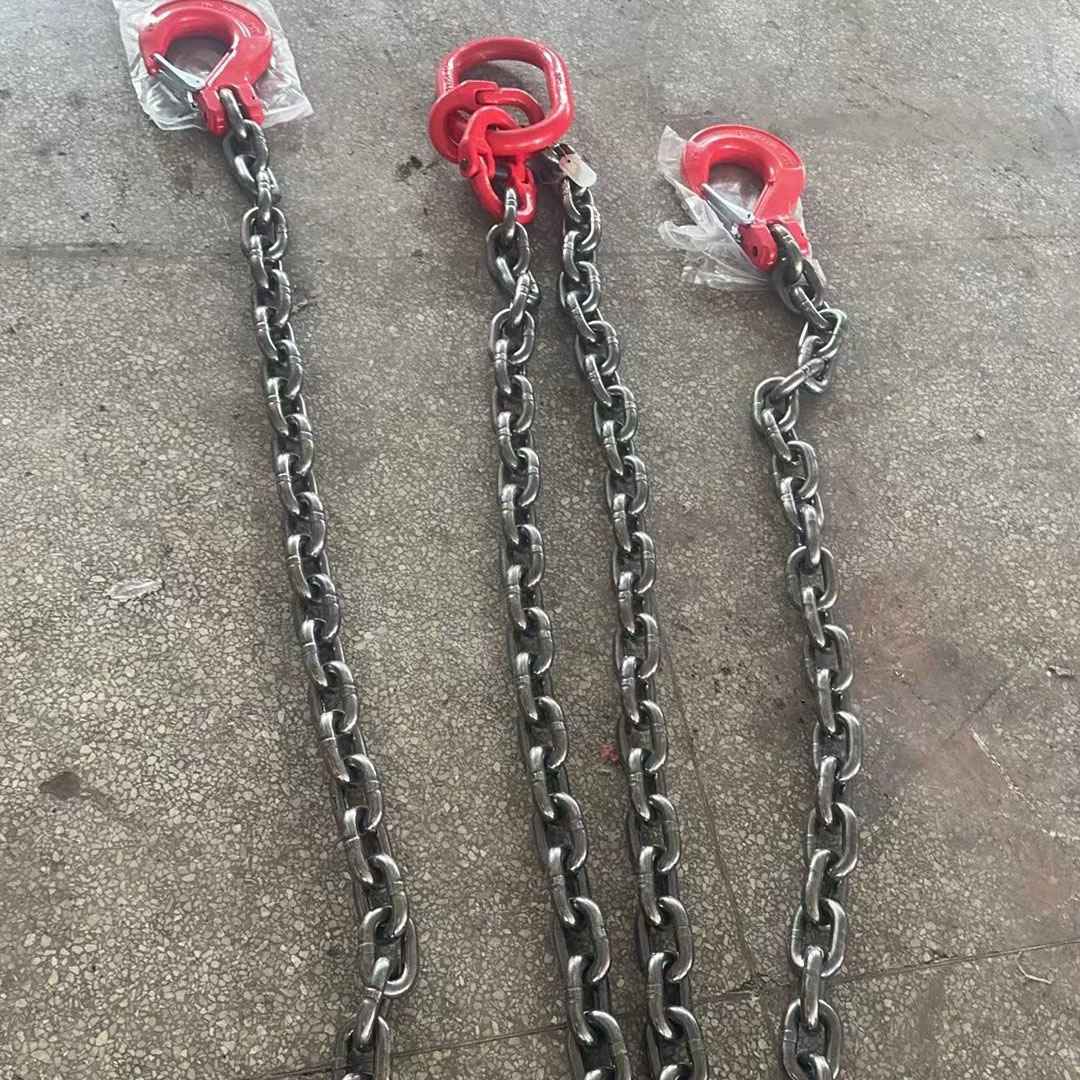

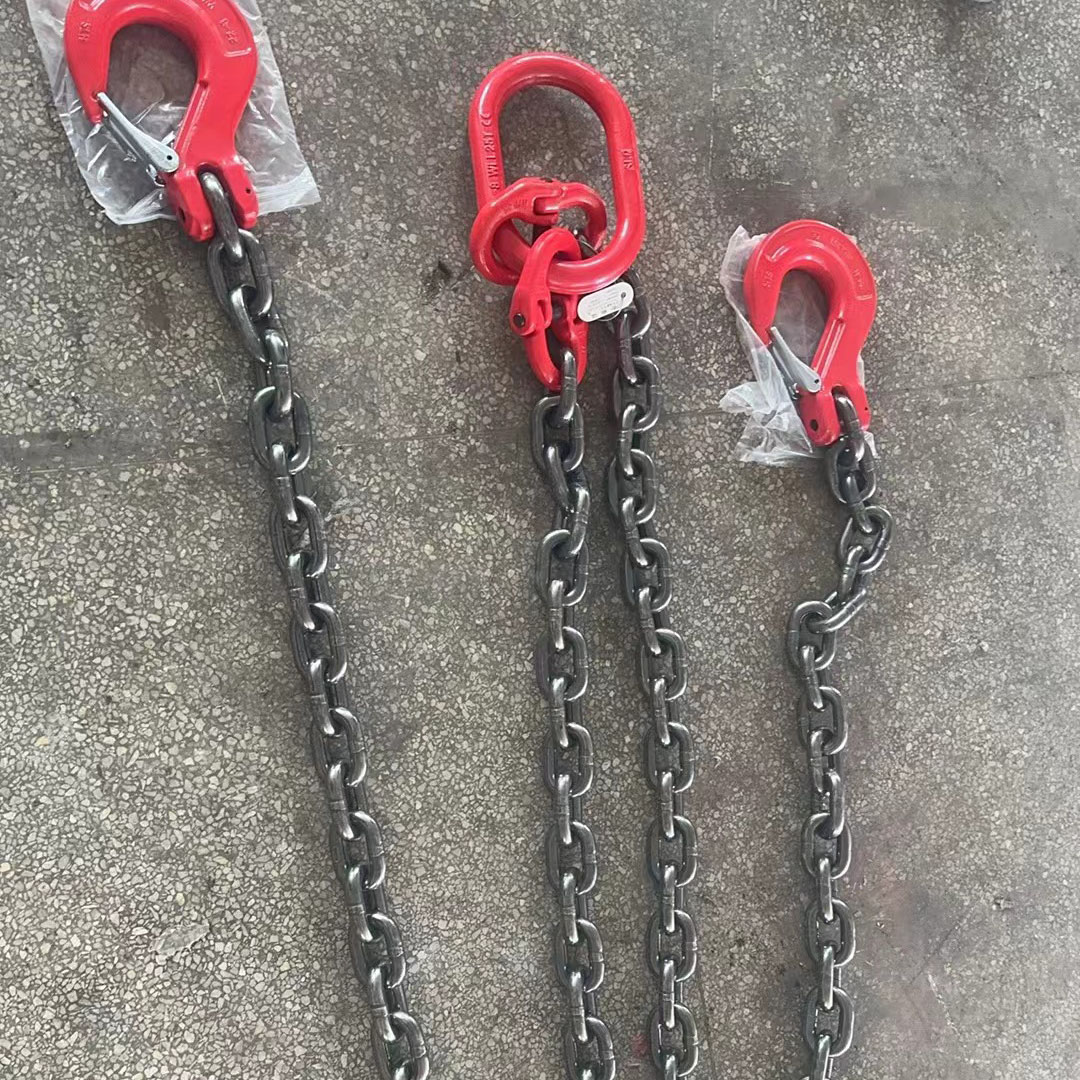

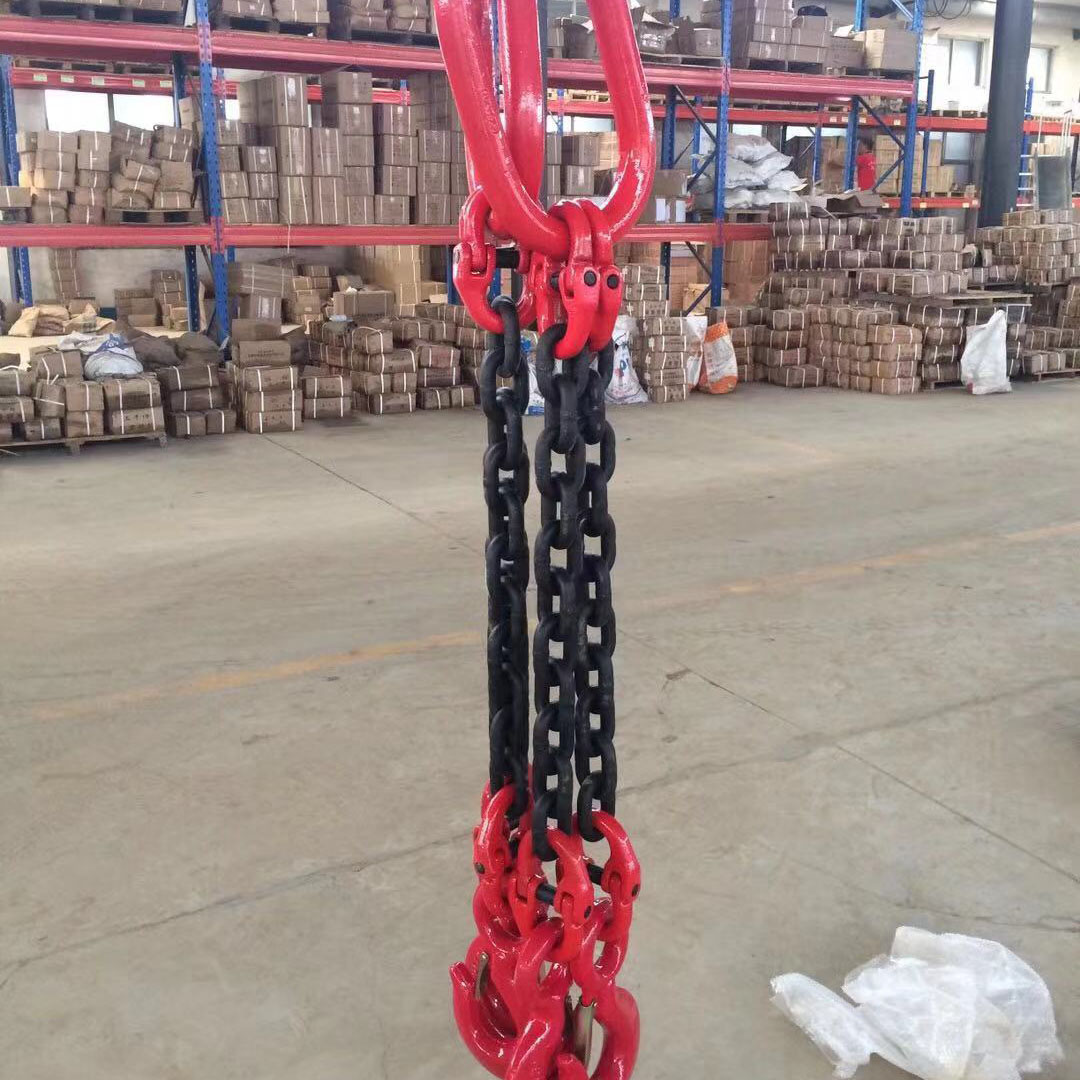

Two Legs Chain Slings
- Product Description
Name:Two Legs Chain Slings
Brand name: Sipower Rigging
Instructions: The terminal uses the chain link with the shackle. It has the advantage that customers can combine at will.Terminal may be hook ,link and shackle.
Function: Chain sling,lifting chains, master link,eye hook,shackles,connecting link.
Contact us: info@sipowerinternational.com
TWO LEGS CHAIN SLING
The parameter of chain in the table is in accordance with JB/T8108.1-1999 Grade(8)
The terminal uses the chain link with the shackle.Is advantageous for the customer to combine at will.
Terminal may be hook,link and shackle.
| Diameter of the chain (mm) | WLL(t) | Master link A×B×d(mm) | Weight/m (kg/m) | Chain weight (kg) | |
| a≤45° | 45°<a≤60° | ||||
| 6.00 | 1.40 | 1.00 | 65×130×16 | 3.61 | 0.79 |
| 8.00 | 2.10 | 1.50 | 80×150×20 | 6.10 | 1.38 |
| 10.0 | 3.50 | 2.50 | 90×160×24 | 11.51 | 2.20 |
| 12.0 | 4.90 | 3.50 | 90×160×24 | 16.45 | 3.10 |
| 14.0 | 7.00 | 5.00 | 100×190×28 | 19.39 | 4.13 |
| 16.0 | 8.40 | 6.00 | 110×200×32 | 27.2 | 5.63 |
| 18.0 | 11.2 | 8.00 | 120×230×34 | 30.21 | 6.85 |
| 20.0 | 14.0 | 10.0 | 135×250×38 | 37.03 | 8.60 |
| 22.0 | 16.8 | 12.0 | 140×270×42 | 71.23 | 10.2 |
| 24.0 | 19.6 | 14.0 | 140×270×42 | 75.3 | 12.78 |
| 26.0 | 23.8 | 17.0 | 160×310×46 | 124.37 | 14.87 |
| 30.0 | 30.8 | 22.0 | 180×330×56 | 134.3 | 19.6 |
| 34.0 | 50.4 | 36.0 | 210×410×68 | 155.45 | 22.7 |
