Aluminum Oval Sleeves
| Product | Aluminum Oval Sleeves |
| Size | 1/4",5/16",3/8",7/16",1/2",9/16",5/8",etc. |
| Finish | / |
- Product Description

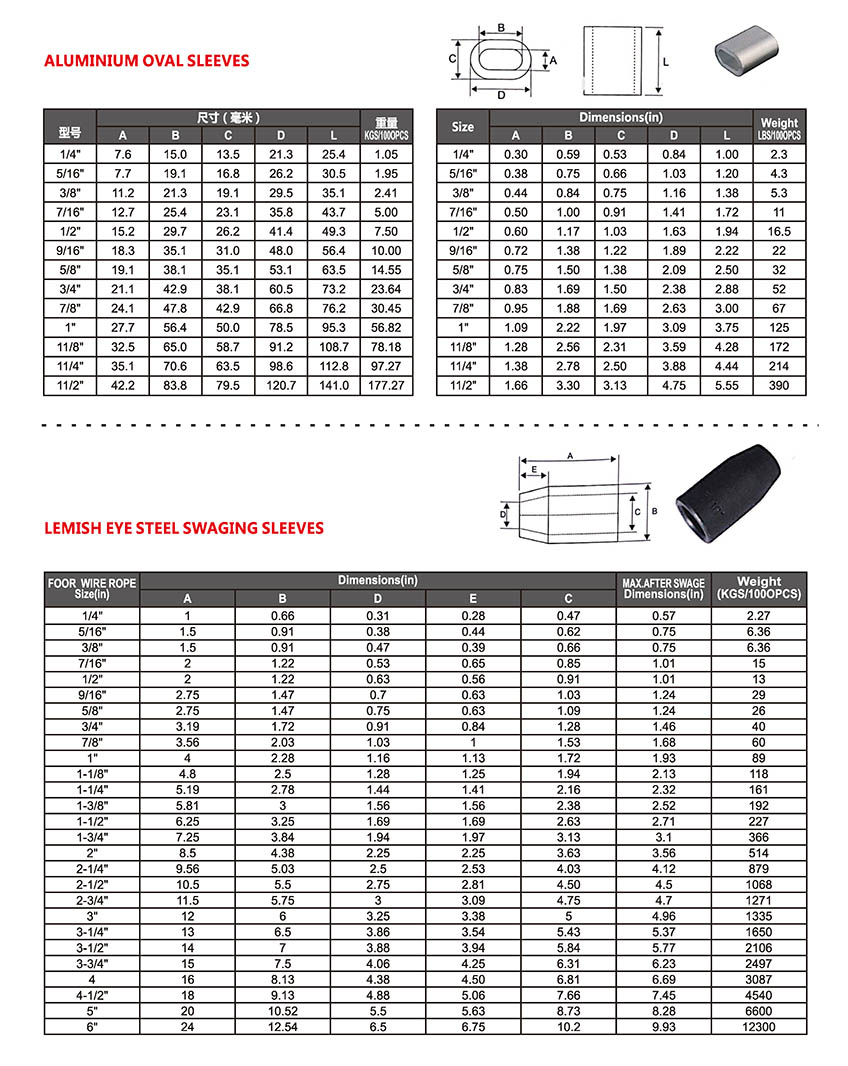

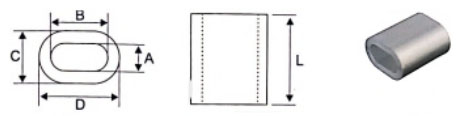

ALUMINIUM OVAL SLEEVES
| 型号 | 尺寸（毫米） | 重量 KGS/1000PCS |
||||
| A | B | C | D | L | ||
| 1/4" | 7.6 | 15.0 | 13.5 | 21.3 | 25.4 | 1.05 |
| 5/16" | 7.7 | 19.1 | 16.8 | 26.2 | 30.5 | 1.95 |
| 3/8" | 11.2 | 21.3 | 19.1 | 29.5 | 35.1 | 2.41 |
| 7/16" | 12.7 | 25.4 | 23.1 | 35.8 | 43.7 | 5.00 |
| 1/2" | 15.2 | 29.7 | 26.2 | 41.4 | 49.3 | 7.50 |
| 9/16" | 18.3 | 35.1 | 31.0 | 48.0 | 56.4 | 10.00 |
| 5/8" | 19.1 | 38.1 | 35.1 | 53.1 | 63.5 | 14.55 |
| 3/4" | 21.1 | 42.9 | 38.1 | 60.5 | 73.2 | 23.64 |
| 7/8" | 24.1 | 47.8 | 42.9 | 66.8 | 76.2 | 30.45 |
| 1" | 27.7 | 56.4 | 50.0 | 78.5 | 95.3 | 56.82 |
| 11/8" | 32.5 | 65.0 | 58.7 | 91.2 | 108.7 | 78.18 |
| 11/4" | 35.1 | 70.6 | 63.5 | 98.6 | 112.8 | 97.27 |
| 11/2" | 42.2 | 83.8 | 79.5 | 120.7 | 141.0 | 177.27 |
| Size | Dimensions(in) | Weight LBS/1000PCS |
||||
| A | B | C | D | L | ||
| 1/4" | 0.30 | 0.59 | 0.53 | 0.84 | 1.00 | 2.3 |
| 5/16" | 0.38 | 0.75 | 0.66 | 1.03 | 1.20 | 4.3 |
| 3/8" | 0.44 | 0.84 | 0.75 | 1.16 | 1.38 | 5.3 |
| 7/16" | 0.50 | 1.00 | 0.91 | 1.41 | 1.72 | 11 |
| 1/2" | 0.60 | 1.17 | 1.03 | 1.63 | 1.94 | 16.5 |
| 9/16" | 0.72 | 1.38 | 1.22 | 1.89 | 2.22 | 22 |
| 5/8" | 0.75 | 1.50 | 1.38 | 2.09 | 2.50 | 32 |
| 3/4" | 0.83 | 1.69 | 1.50 | 2.38 | 2.88 | 52 |
| 7/8" | 0.95 | 1.88 | 1.69 | 2.63 | 3.00 | 67 |
| 1" | 1.09 | 2.22 | 1.97 | 3.09 | 3.75 | 125 |
| 11/8" | 1.28 | 2.56 | 2.31 | 3.59 | 4.28 | 172 |
| 11/4" | 1.38 | 2.78 | 2.50 | 3.88 | 4.44 | 214 |
| 11/2" | 1.66 | 3.30 | 3.13 | 4.75 | 5.55 | 390 |

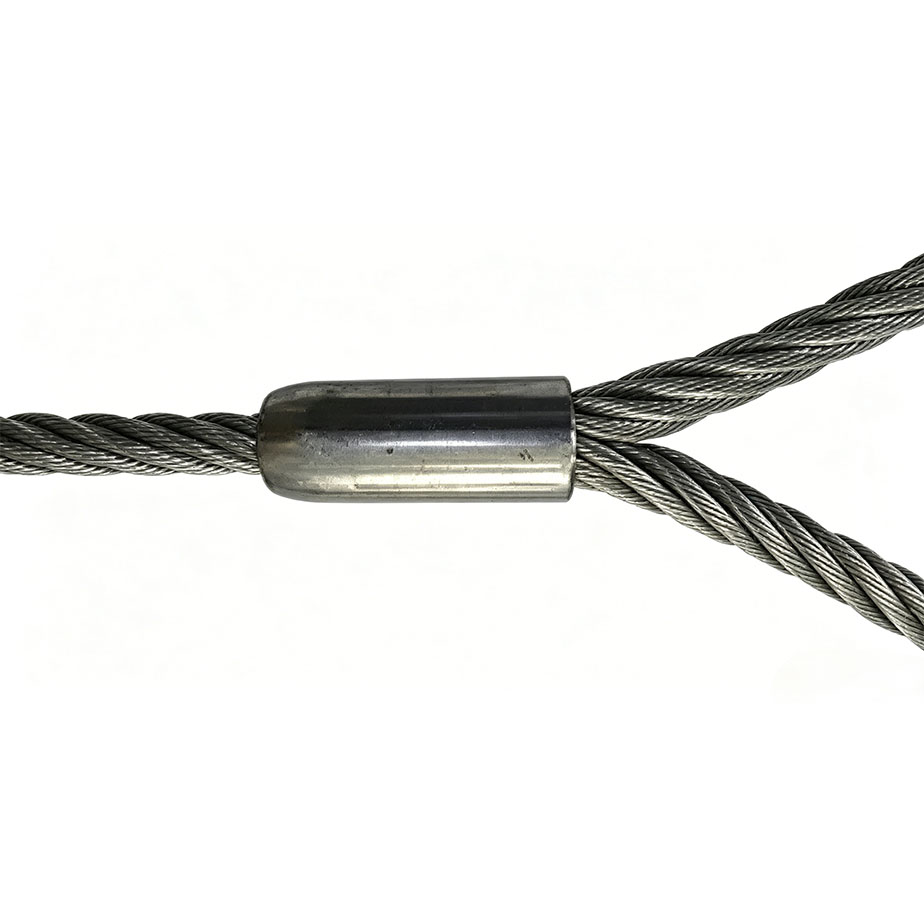

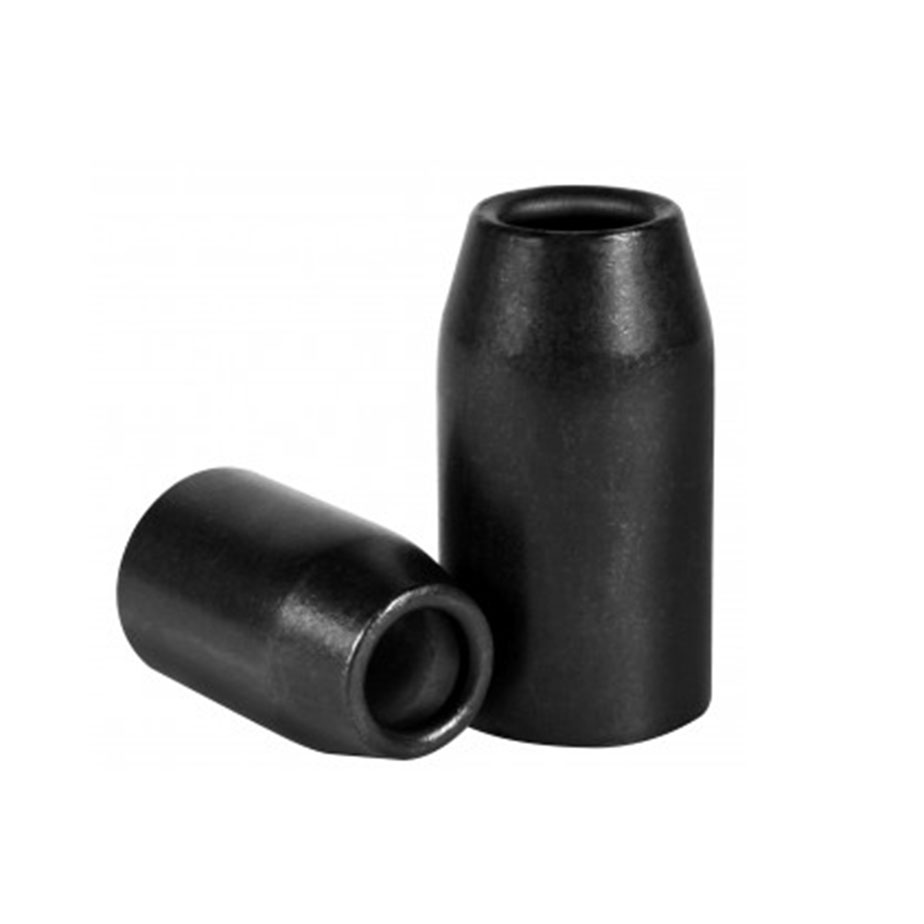

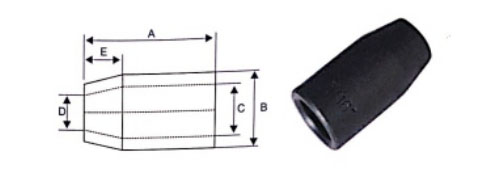

LEMISH EYE STEEL SWAGING SLEEVES
| FOOR WIRE ROPE Size(in) |
Dimensions(in) | MAX.AFTER SWAGE Dimensions(in) |
Weight (KGS/100OPCS) |
||||
| A | B | D | E | C | |||
| 1/4" | 1 | 0.66 | 0.31 | 0.28 | 0.47 | 0.57 | 2.27 |
| 5/16" | 1.5 | 0.91 | 0.38 | 0.44 | 0.62 | 0.75 | 6.36 |
| 3/8" | 1.5 | 0.91 | 0.47 | 0.39 | 0.66 | 0.75 | 6.36 |
| 7/16" | 2 | 1.22 | 0.53 | 0.65 | 0.85 | 1.01 | 15 |
| 1/2" | 2 | 1.22 | 0.63 | 0.56 | 0.91 | 1.01 | 13 |
| 9/16" | 2.75 | 1.47 | 0.7 | 0.63 | 1.03 | 1.24 | 29 |
| 5/8" | 2.75 | 1.47 | 0.75 | 0.63 | 1.09 | 1.24 | 26 |
| 3/4" | 3.19 | 1.72 | 0.91 | 0.84 | 1.28 | 1.46 | 40 |
| 7/8" | 3.56 | 2.03 | 1.03 | 1 | 1.53 | 1.68 | 60 |
| 1" | 4 | 2.28 | 1.16 | 1.13 | 1.72 | 1.93 | 89 |
| 1-1/8" | 4.8 | 2.5 | 1.28 | 1.25 | 1.94 | 2.13 | 118 |
| 1-1/4" | 5.19 | 2.78 | 1.44 | 1.41 | 2.16 | 2.32 | 161 |
| 1-3/8" | 5.81 | 3 | 1.56 | 1.56 | 2.38 | 2.52 | 192 |
| 1-1/2" | 6.25 | 3.25 | 1.69 | 1.69 | 2.63 | 2.71 | 227 |
| 1-3/4" | 7.25 | 3.84 | 1.94 | 1.97 | 3.13 | 3.1 | 366 |
| 2" | 8.5 | 4.38 | 2.25 | 2.25 | 3.63 | 3.56 | 514 |
| 2-1/4" | 9.56 | 5.03 | 2.5 | 2.53 | 4.03 | 4.12 | 879 |
| 2-1/2" | 10.5 | 5.5 | 2.75 | 2.81 | 4.50 | 4.5 | 1068 |
| 2-3/4" | 11.5 | 5.75 | 3 | 3.09 | 4.75 | 4.7 | 1271 |
| 3" | 12 | 6 | 3.25 | 3.38 | 5 | 4.96 | 1335 |
| 3-1/4" | 13 | 6.5 | 3.86 | 3.54 | 5.43 | 5.37 | 1650 |
| 3-1/2" | 14 | 7 | 3.88 | 3.94 | 5.84 | 5.77 | 2106 |
| 3-3/4" | 15 | 7.5 | 4.06 | 4.25 | 6.31 | 6.23 | 2497 |
| 4 | 16 | 8.13 | 4.38 | 4.50 | 6.81 | 6.69 | 3087 |
| 4-1/2" | 18 | 9.13 | 4.88 | 5.06 | 7.66 | 7.45 | 4540 |
| 5" | 20 | 10.52 | 5.5 | 5.63 | 8.73 | 8.28 | 6600 |
| 6" | 24 | 12.54 | 6.5 | 6.75 | 10.2 | 9.93 | 12300 |
Product Description

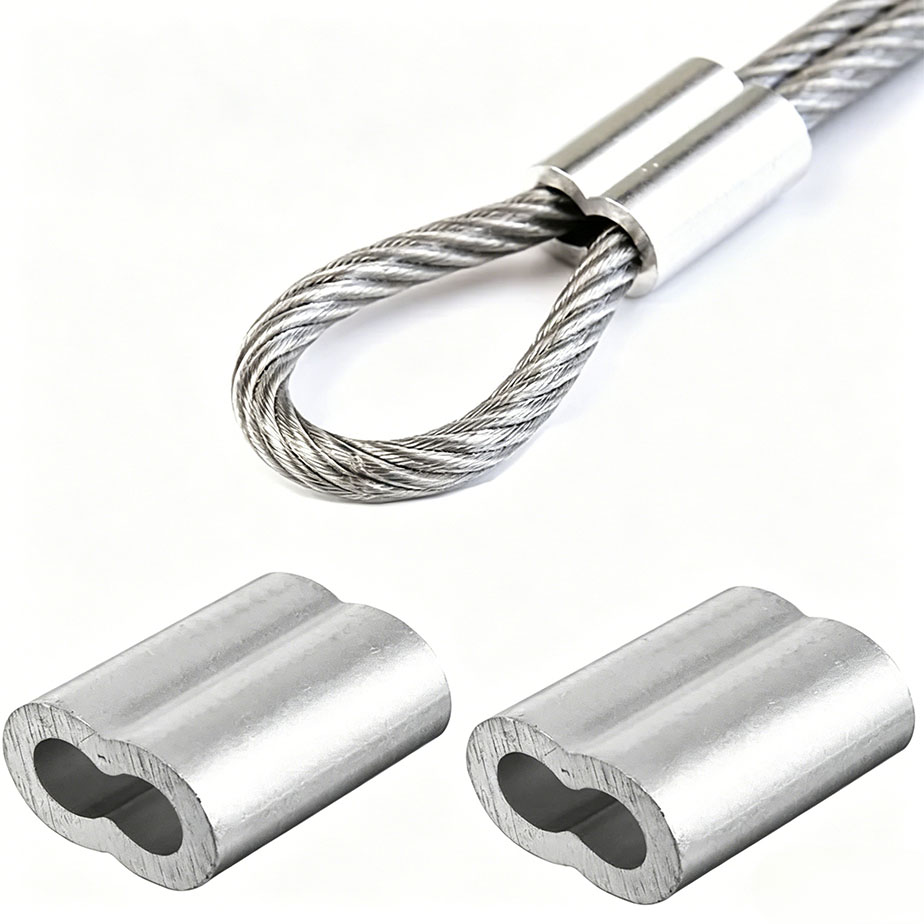

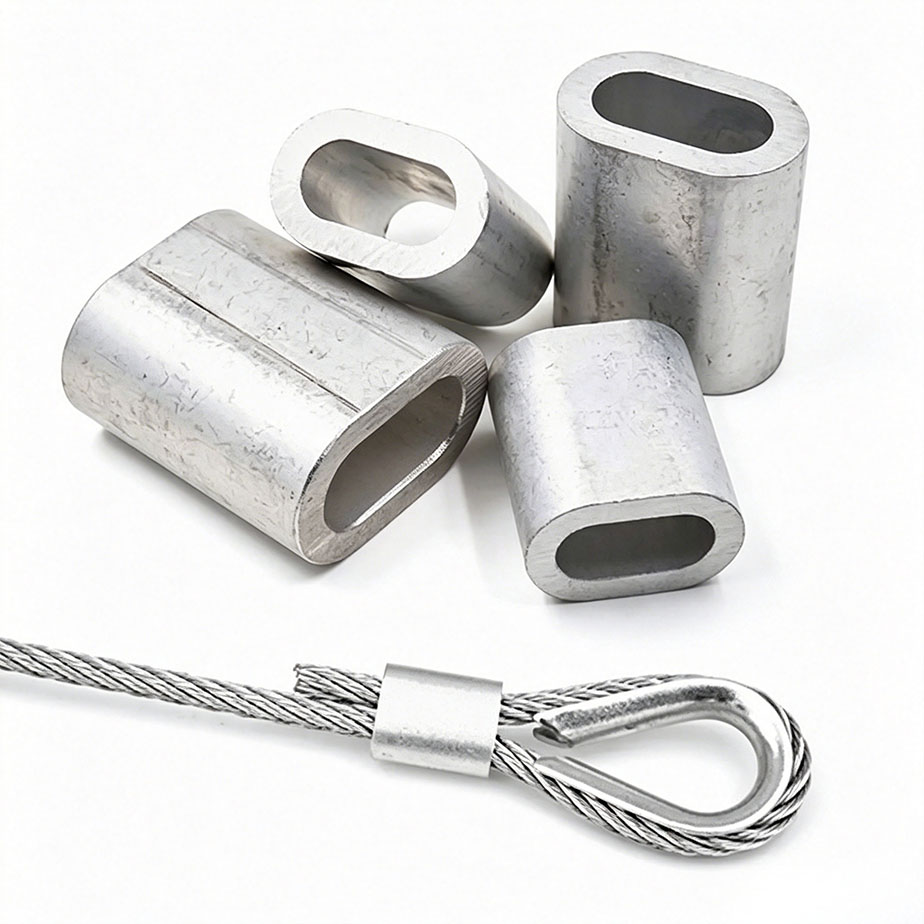

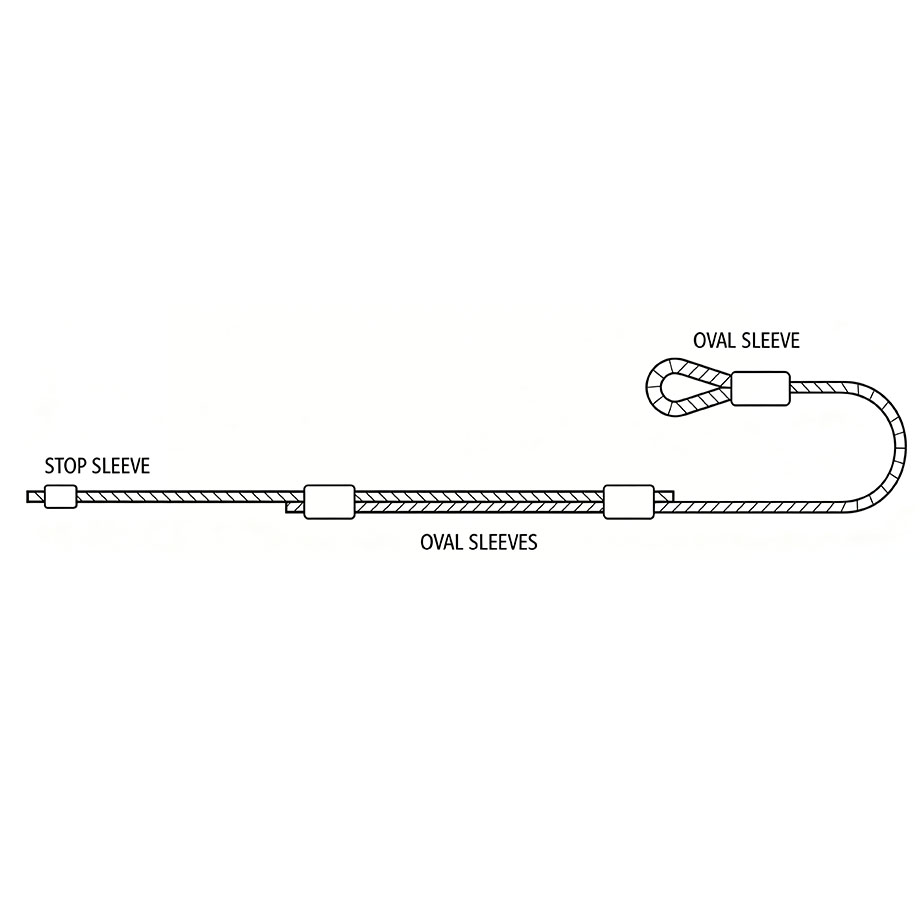

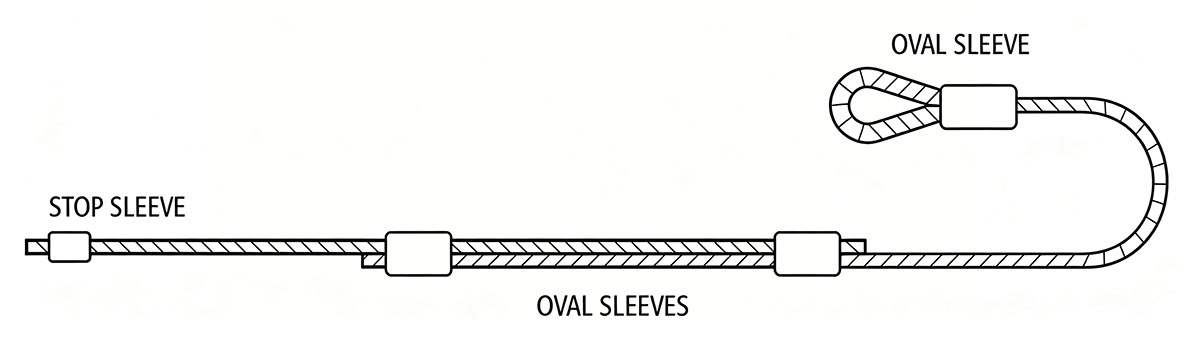

Our aluminum sleeves are made from high quality extrusions. We cut them to our standard lengths or your custom lengths, then clean and package them to your specifications. Customers swage these sleeves onto wire rope to form eyes in the rope or to make grommets. They are commonly used to terminate wire rope and cable in fencing, as well as in some construction and agricultural applications. The sleeves are extruded from high quality, seamless alloy and heat treated for cold forming or swaging processes. When properly swaged or crimped, the sleeve will attain approximately 95% of IP nominal wire rope strength.
