Timbles / Clips

Product Thimbles
Finish 16mm,18mm,20mm,22mm,24mm,26mm,28mm,etc.
Finish S.S. 316/304,Galv., H.D.G.
Product Clips
Finish 1/8’’,3/16’’,1/4’’,5/16’’,3/8’’,7/16’’,1/2’’,9/16’’,etc.
Finish S.S. 316/304,Galv., H.D.G.

  • Product Description
Product Description


Produce Code Application

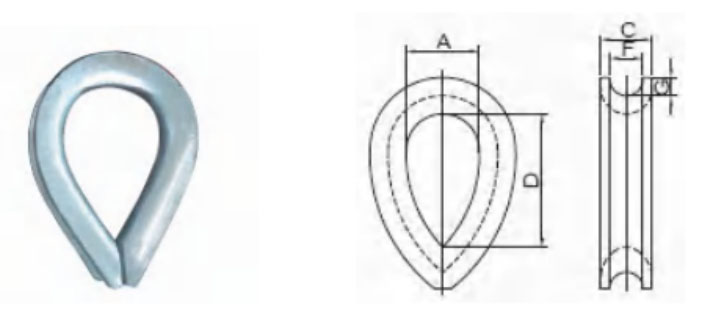

Rope Dia.(mm)		 Main Dimension(mm)
F C A D G
HS2301 16 18.4 28 40 72 8.8
HS2302 18 20.7 31.5 45 81 9.9
HS2303 20 23 35 50 90 11
HS2304 22 25.3 38.5 55 99 12.1
HS2305 24 27.6 42 60 108 13.2
HS2306 26 29.2 45.5 65 117 14.3
HS2307 28 32.2 49 70 126 15.4
HS2308 32 36.8 56 80 144 17.6
HS2309 36 41.4 63 90 162 19.8
HS2310 40 46 70 100 180 22
HS2311 44 50.6 77 110 198 24.2
HS2312 48 55.2 84 120 216 26.4
HS2313 52 59.8 91 130 234 28.6
HS2314 56 64.4 98 140 252 30.8
HS2315 60 69 105 150 270 33

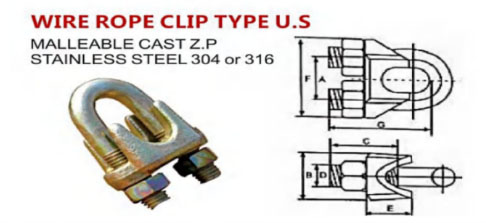

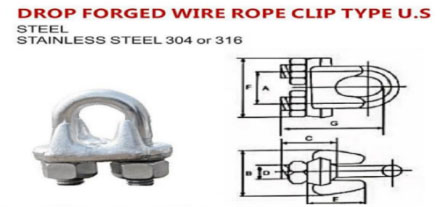

Wire Rope Clip


Size A B C D E F G Weight (kgs) Per 100
1/8 11 14 14 4/4 10.8 22 20 1.54
3/16 14.5 15 16 1/4 13 26 24 2.5
1/4 17 18.5 20 5/16 15 32 31 5.3
5/16 18.3 20 22 5/16 16 35 34 5.9
3/8 22.5 22 27 3/8 22 40.5 41 11
7/16 24 23 30 3/8 22 43 42 11
1/2 27 26 35 7/16 23.3 49 53 18.5
9/16 30 26.5 40 1/2 27 52.5 54 25
5/8 33 28 40 1/2 28 57.5 59 28
3/4 34.5 32 42 9/16 34 61 68 35
7/8 41 37 46 5/8 38 71 78 53
1 45.5 42 55 5/8 43 77.5 87 66.6


Size (MM) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM)
1/8 12 20 11 3/16 10 23 18
3/16 15 23 14 1/4 12 29 24
1/4 19 30 15 5/16 16 35 26
5/16 22 33 19 3/8 18 43 35
3/8 25 41 19 3/8 23 49 38
7/16 30 46 25 7/16 26 58 47
1/2 30 48 25 1/2 28 58 47
8/16 33 52 32 9/16 31 63 57
5/8 33 52 32 9/16 34 63 60
3/4 38 57 36 5/8 35 72 70
7/8 44 62 41 3/4 40 80 79
1 47 66 46 3/4 45 88 89
1-1/8 51 71 51 3/4 48 90 96
1-1/4 59 80 54 7/8 56 105 108
1-3/8 60 80 59 7/8 59 106 118
1-1/2 66 67 60 7/8 62 113 125
1-5/8 70 92 66 1 65 121 135
Product Description

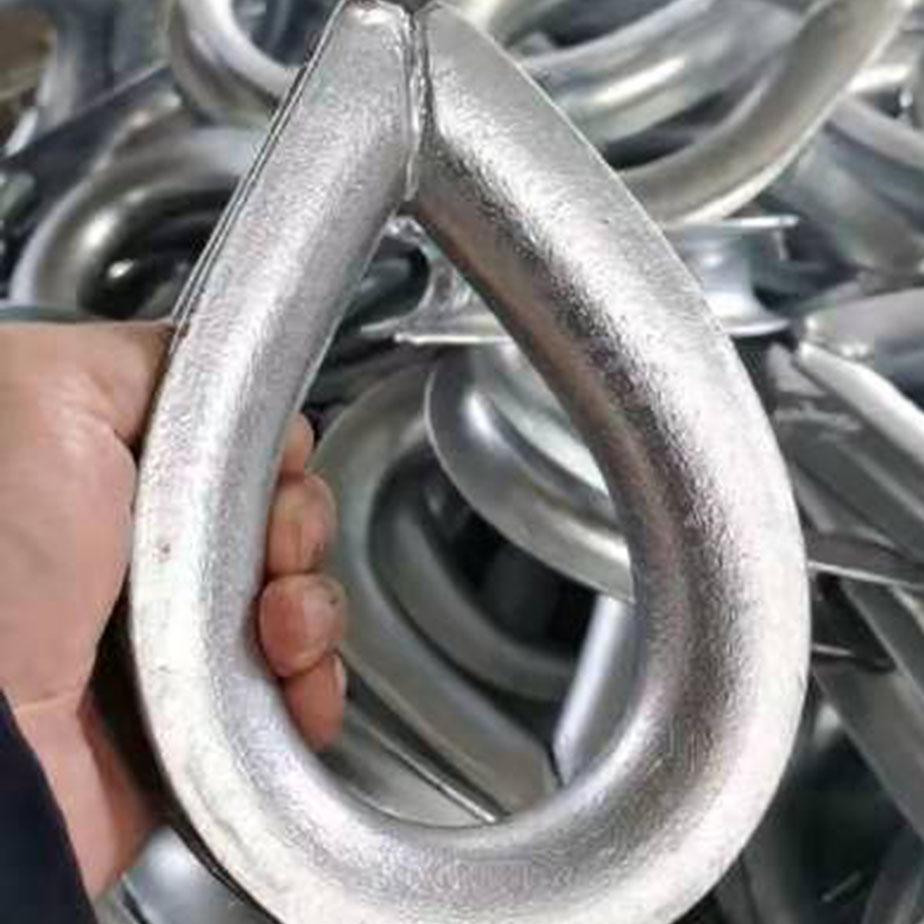

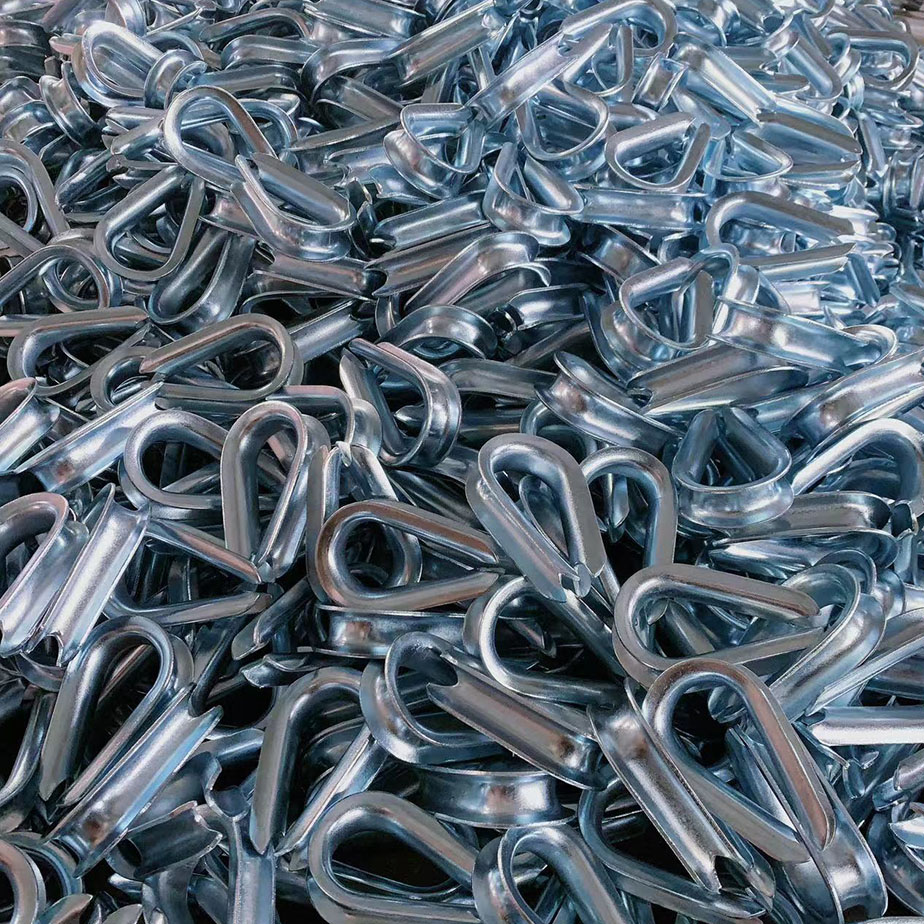

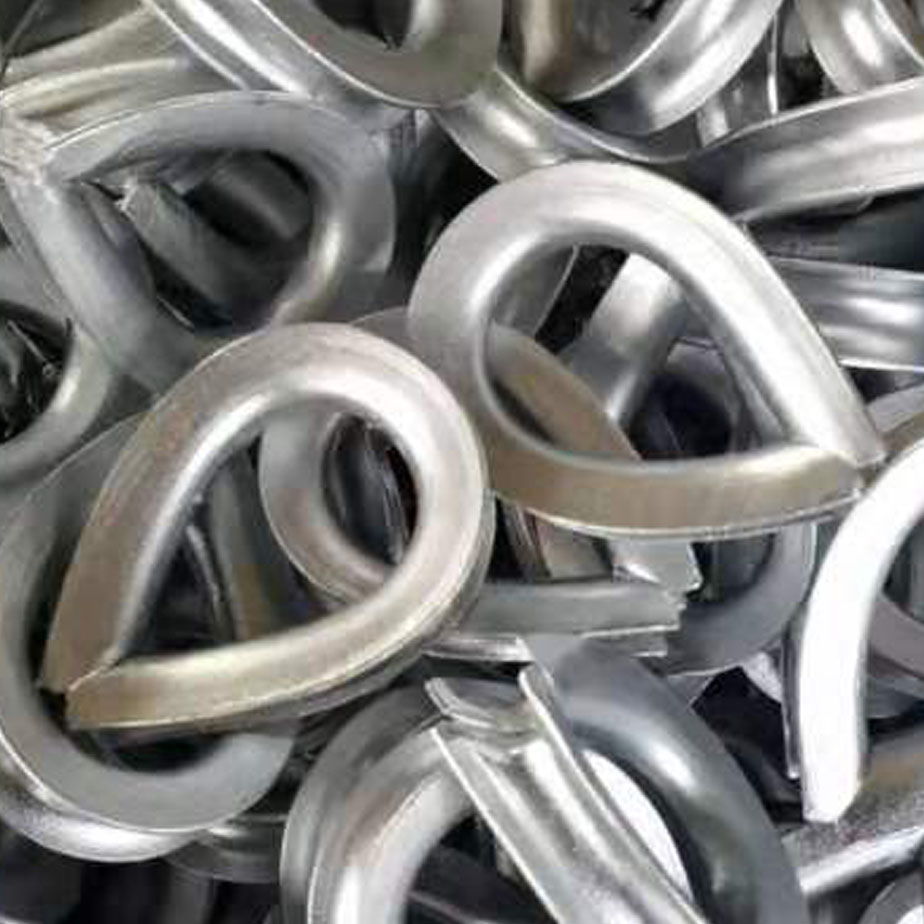

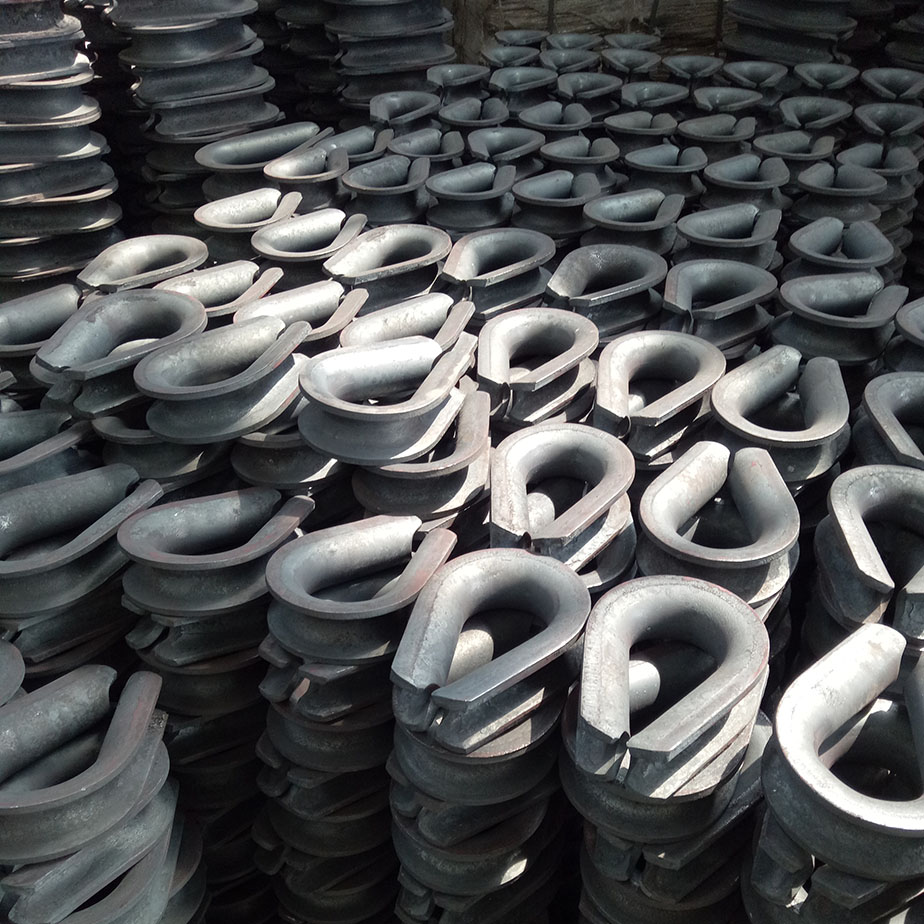

Thimbles, also commonly known as wire rope thimbles or heart-shaped thimbles, are essential rigging fittings manufactured through precision forging or casting with strict dimensional calibration and structural reinforcement. Available in high-quality carbon steel, high-strength alloy steel, and 304/316L stainless steel, these thimbles are offered with two surface finishes: electro-galvanized (cold-dipped zinc) for a smooth, bright coating suitable for indoor and light-duty applications, and hot-dip galvanized for a thick, durable zinc layer with superior corrosion resistance ideal for outdoor, heavy-duty, high-humidity and salt-spray environments. Designed with a smooth, precise profile, they effectively protect wire ropes from bending, crushing and abrasion, improving load distribution and extending the service life of the entire rigging assembly.

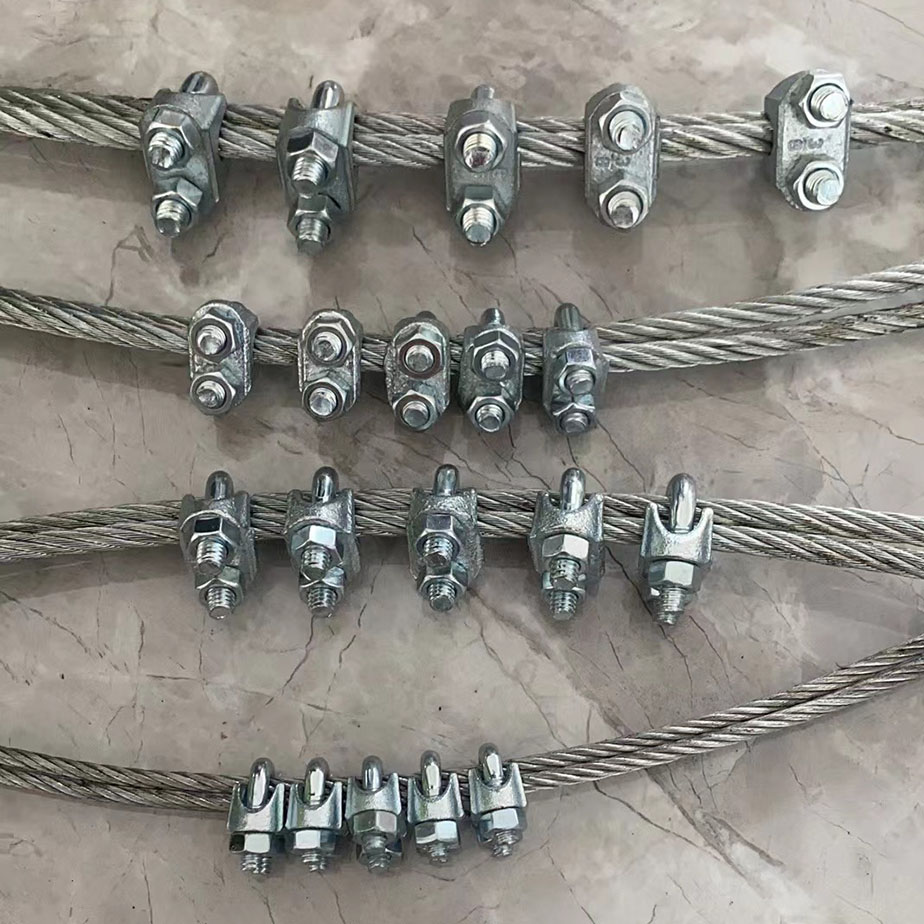

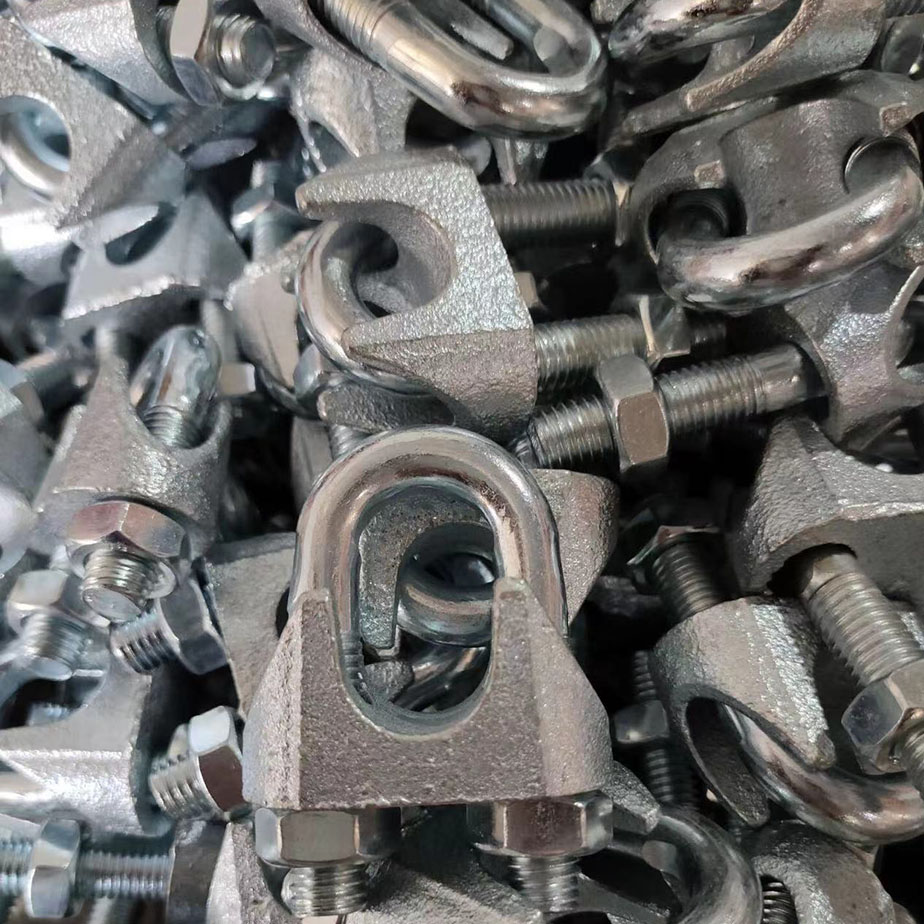

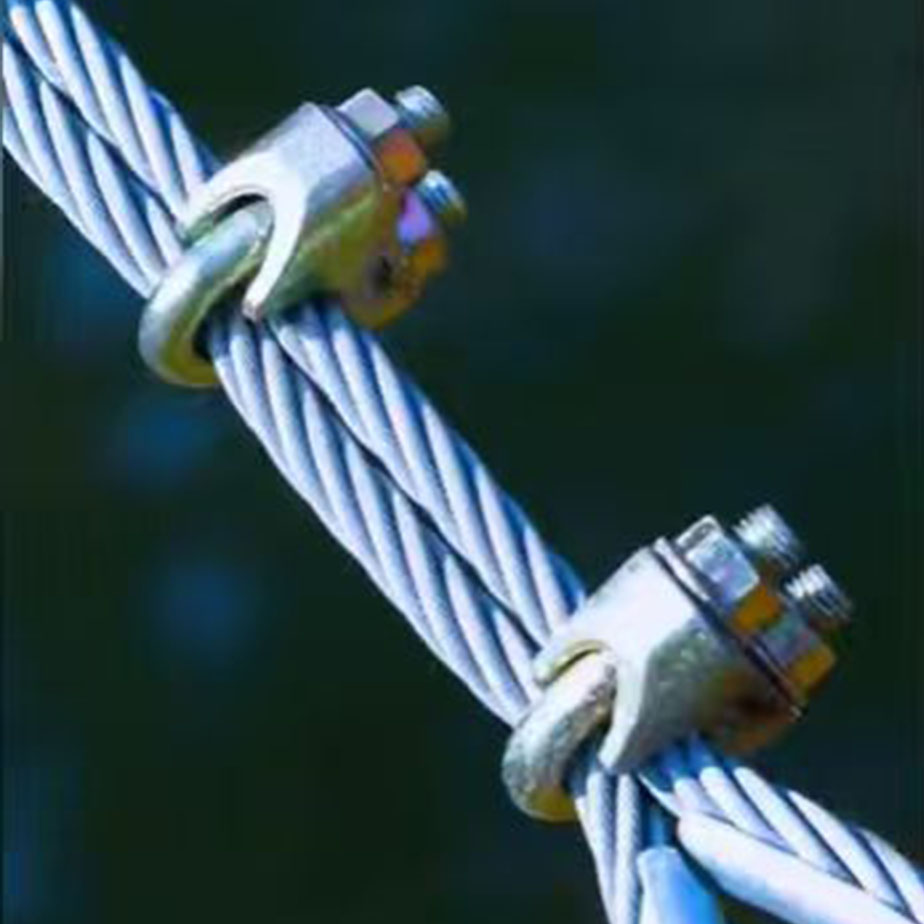

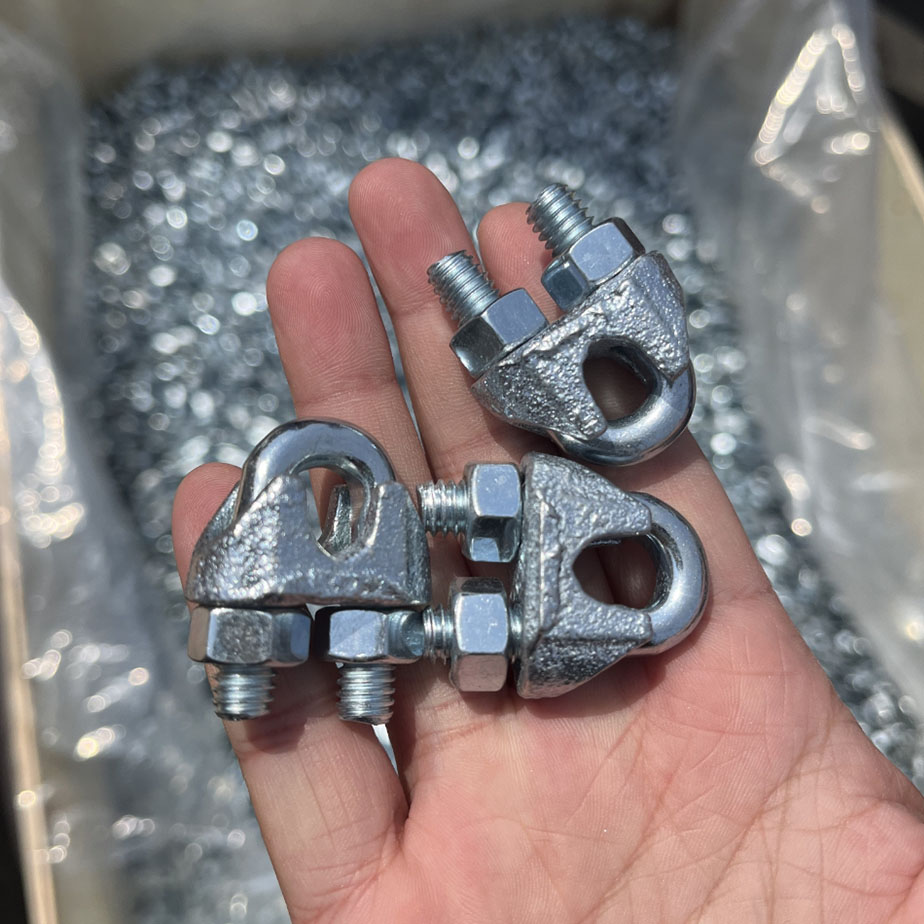

Wire Rope Clips, also classically known as wire rope clips, are manufactured through precision forging, high-precision threading, and quenching and tempering heat treatment for enhanced strength and stability. They are available in materials including malleable iron, Q235 carbon steel, 45# carbon steel, alloy steel, and 304/316 stainless steel, with surface finishes of electro-galvanized for a smooth, uniform coating suitable for general environments, and hot-dip galvanizing for a thicker, more corrosion-resistant layer ideal for outdoor and heavy-duty applications.
