Heavy Duty Flat Webbing Sling For USA Market

  • Product Description

●Meet or exceed US standard ASMEB30.9
●Class 7 webbing possessing a minimum certified tensile strength of 9800L _BS/in width
●Low strain ,wear -resistance,long life material (100% PES)
●Safety factor 5:1
●Eyes are reforced with polyester wear pads
●Lengths are measured from bearing point to bearing point

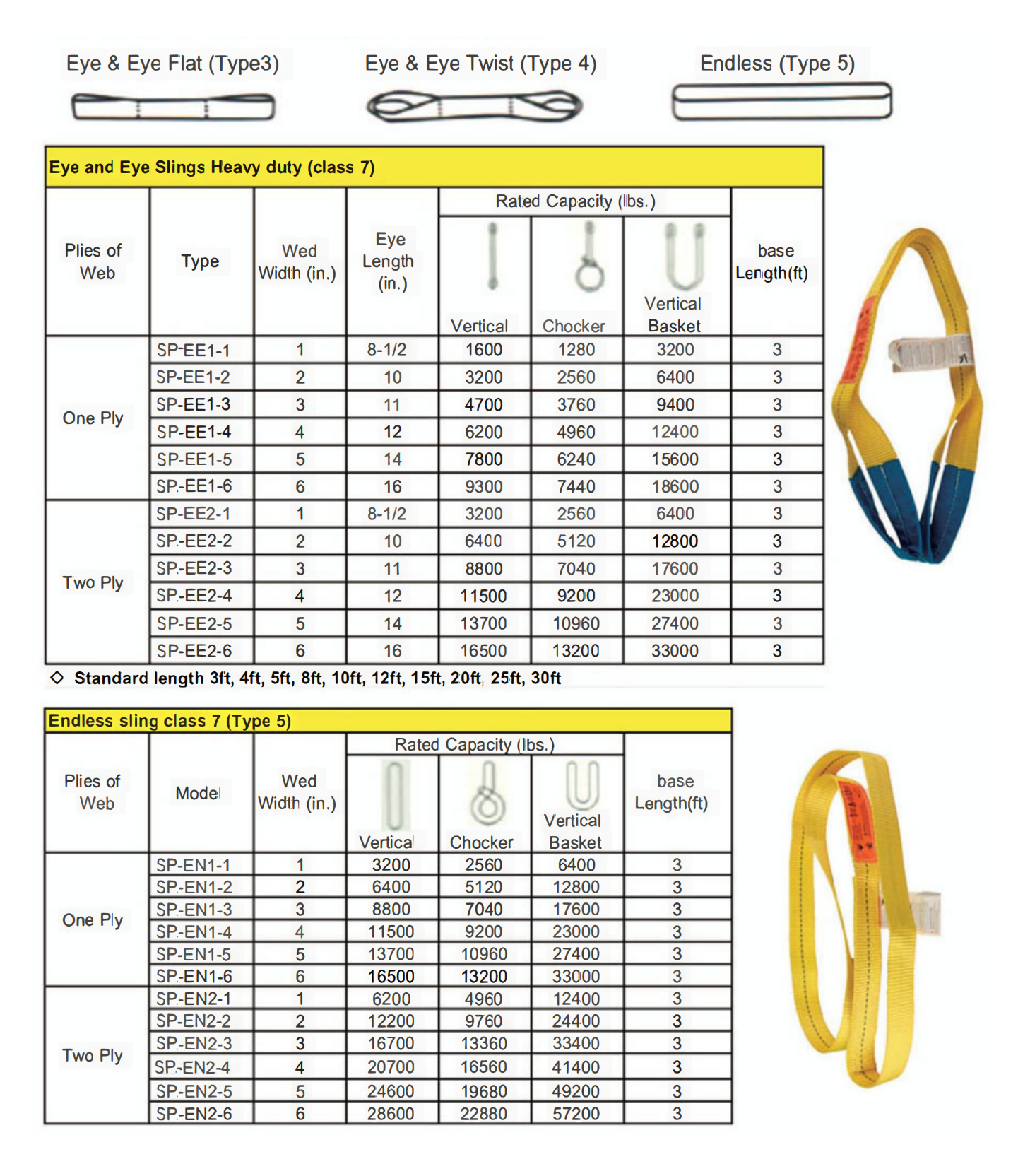

Eye and Eye Slings Heavy duty (class 7)
Plies of Web Type Web Width (in.) Eye Length (in.) Rated Capacity (lbs.) base Length(ft)
Vertical Choker Vertical Basket
One Ply SP-EE1-1 1 8-1/2 1600 1280 3200 3
SP-EE1-2 2 10 3200 2560 6400 3
SP-EE1-3 3 11 4700 3760 9400 3
SP-EE1-4 4 12 6200 4960 12400 3
SP-EE1-5 5 14 7800 6240 15600 3
SP-EE1-6 6 16 9300 7440 18600 3
Two Ply SP-EE2-1 1 8-1/2 3200 2560 6400 3
SP-EE2-2 2 10 6400 5120 12800 3
SP-EE2-3 3 11 8800 7040 17600 3
SP-EE2-4 4 12 11500 9200 23000 3
SP-EE2-5 5 14 13700 10960 27400 3
SP-EE2-6 6 16 16500 13200 33000 3

Endless sling class 7 (Type 5)
Plies of Web Model Web Width (in.) Rated Capacity (lbs.) base Length(ft)
Vertical Choker Vertical Basket
One Ply SP-EN1-1 1 3200 2560 6400 3
SP-EN1-2 2 6400 5120 12800 3
SP-EN1-3 3 8800 7040 17600 3
SP-EN1-4 4 11500 9200 23000 3
SP-EN1-5 5 13700 10960 27400 3
SP-EN1-6 6 16500 13200 33000 3
Two Ply SP-EN2-1 1 6200 4960 12400 3
SP-EN2-2 2 12200 9760 24400 3
SP-EN2-3 3 16700 13360 33400 3
SP-EN2-4 4 20700 16560 41400 3
SP-EN2-5 5 24600 19680 49200 3
SP-EN2-6 6 28600 22880 57200 3
Brief Introduction of product range:

Dear Customers and Friends
Sipower is a raising brand for Marine Servi ces, and it's agreat honor to introduce you the updated version of our product catalogue.
Marine products and services cover:
* Lashing equi pment
* Lifting equi pment and enginneering
* Rigging gear
* Physical Iashing/welding servi ce on board.
Besides, we could provide one-stop service wi th othermarine accessories, or some consumption for the varietyof vessel s, ship owners and logistics participants.
