Standard Duty Flat Webbing Sling

●Meet or exceed US standard ASMEb30.9
●Class 5 webbing possessing a minimum certified tensile strength of 6800LBS/in width
●Low strain ,wear -resistance,long life material (100% PES)
●Safety factor 5:1
●Eyes are reforced with polyester wear pads
●Lengths are measured from bearing point to bearing point

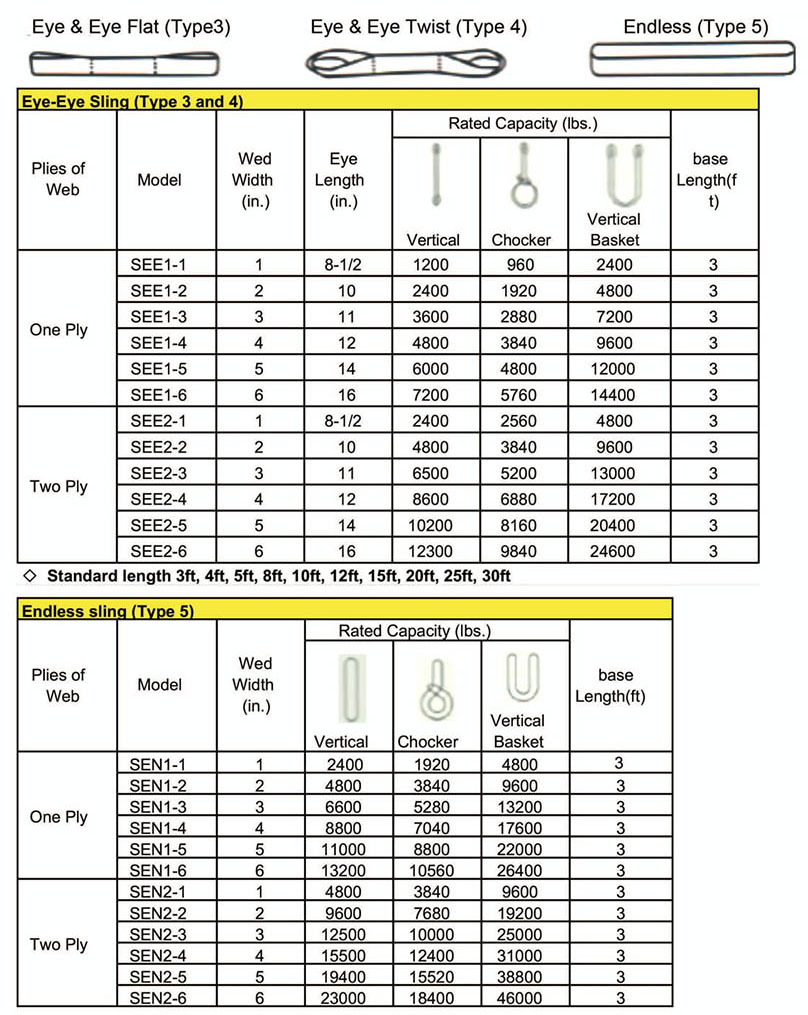

Eye-Eye Sling (Type 3 and 4)

Plies of Web	Model	Wed Width (in.)	Eye Length (in.)	Vertical	Chocker	Vertical Basket	base Length(ft)
One Ply	SEE1-1	1	8-1/2	1200	960	2400	3
	SEE1-2	2	10	2400	1920	4800	3
	SEE1-3	3	11	3600	2880	7200	3
	SEE1-4	4	12	4800	3840	9600	3
	SEE1-5	5	14	6000	4800	12000	3
	SEE1-6	6	16	7200	5760	14400	3
Two Ply	SEE2-1	1	8-1/2	2400	2560	4800	3
	SEE2-2	2	10	4800	3840	9600	3
	SEE2-3	3	11	6500	5200	13000	3
	SEE2-4	4	12	8600	6880	17200	3
	SEE2-5	5	14	10200	8160	20400	3
	SEE2-6	6	16	12300	9840	24600	3

Standard length 3ft, 4ft, 5ft, 8ft, 10ft, 12ft, 15ft, 20ft, 25ft, 30ft

Endless sling (Type 5)

Plies of Web	Model	Wed Width (in.)	Vertical	Chocker	Vertical Basket	base Length(ft)
One Ply	SEN1-1	1	2400	1920	4800	3
	SEN1-2	2	4800	3840	9600	3
	SEN1-3	3	6600	5280	13200	3
	SEN1-4	4	8800	7040	17600	3
	SEN1-5	5	11000	8800	22000	3
	SEN1-6	6	13200	10560	26400	3
Two Ply	SEN2-1	1	4800	3840	9600	3
	SEN2-2	2	9600	7680	19200	3
	SEN2-3	3	12500	10000	25000	3
	SEN2-4	4	15500	12400	31000	3
	SEN2-5	5	19400	15520	38800	3
	SEN2-6	6	23000	18400	46000	3

Brief Introduction of product range:

Dear Customers and Friends
Sipower is a raising brand for Marine Servi ces, and it's agreat honor to introduce you the updated version of our product catalogue.
Marine products and services cover:
* Lashing equi pment
* Lifting equi pment and enginneering
* Rigging gear
* Physical Iashing/welding servi ce on board.
Besides, we could provide one-stop service wi th othermarine accessories, or some consumption for the varietyof vessel s, ship owners and logistics participants.
